Set Motion Detection Alarm for Wi-Fi Doorbell

Motion detection is a way of detecting motion in a surveillance scene by analyzing image data and differences in a series of images. After setting motion detection area for Wi-Fi doorbell, the device will be able to detect the object in motion and at the same time the Mobile Client will receive an alarm notification about the motion detection event.

1. Enter the Settings page of the Wi-Fi doorbell.

   • On the device list page, if the list is displayed in list mode, swipe the name of a Wi-Fi doorbell to the left and then tap .

   • On the device list page, if the list is displayed in thumbnail mode, swipe the name of Wi-Fi doorbell to the left and then tap .

   • On the Live View page of the device, tap and then tap Settings.

2. Tap Notification to enter the Notification page.
3. Draw motion detection area.
   1. Tap Draw Motion Detection Area to enter the Motion Detection Area page.

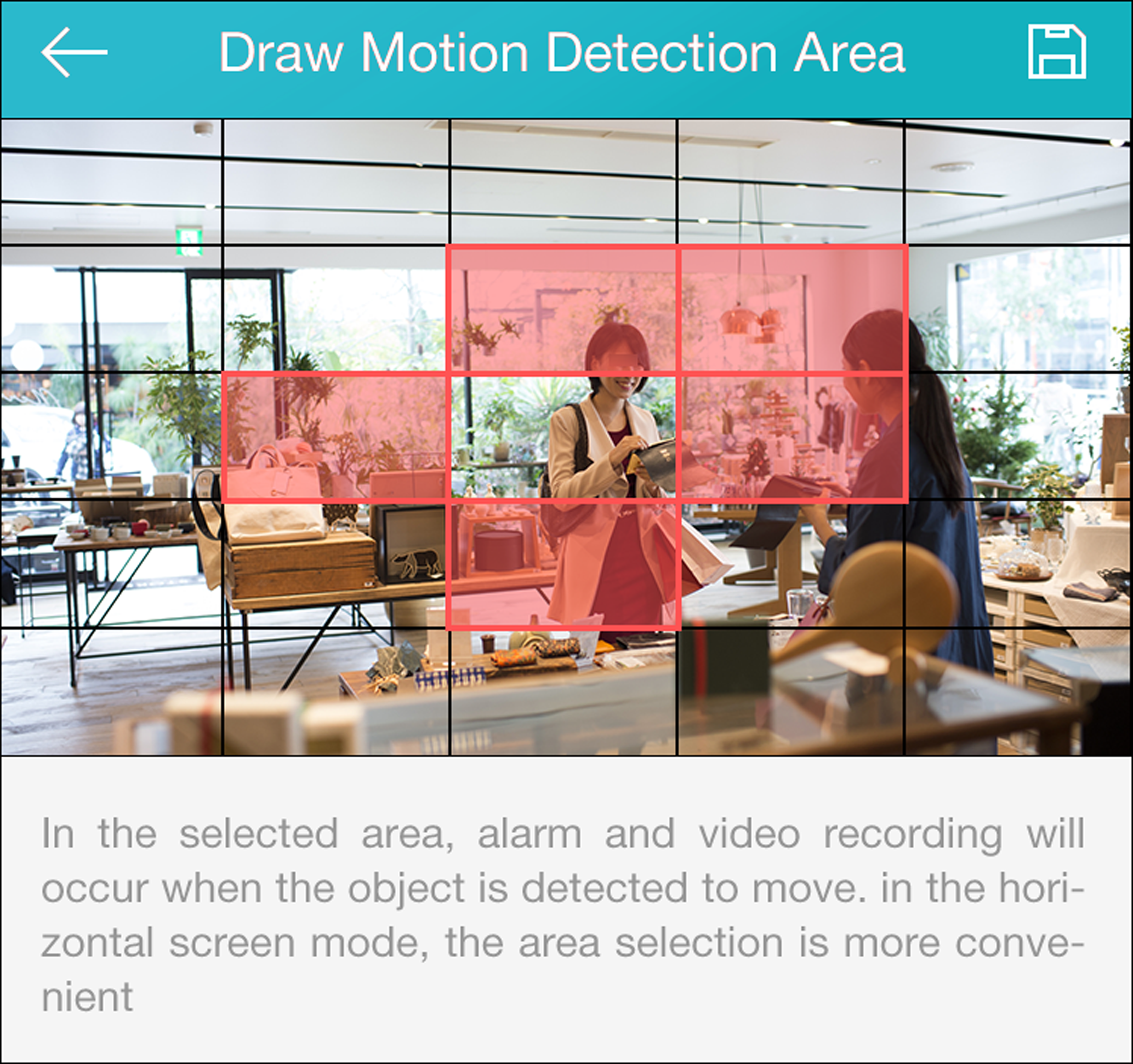

      Figure 1. Draw Motion Detection Area
   2. Tap the grid(s) on the live video image to select the motion detection area.
   3. Tap to save the settings.
4. Tap Motion Detection Sensitivity on the Alarm Notification page and then drag the slider to adjust the sensitivity.

   Low

   Moving persons, large moving pets, and any other large moving objects in the motion detection area will trigger the alarm, while smaller objects will not.

   Medium

   Moving small pets and any other medium-sized moving objects in the motion detection area will trigger the alarm, while smaller objects will not.

   High

   Moving insects, moving leaves, and any other larger objects will trigger the alarm.
